Product Details:
|
| Motor: | 24V DC(Optional) | Self-Locking: | Yes |
|---|---|---|---|
| Tracking Precision: | 0.15 Degree | Feature: | Self Locking Gear |
| Motor Voltage: | 24V DC | Application: | Solar Panel Tracking System |
| Openness: | Closed | Package: | Plywood Case |
| Highlight: | Low Speed Enclosed Electric Slew Drive,PV Trackers Enclosed Electric Slew Drive,24V DC Enclosed Electric Slew Drive |
||

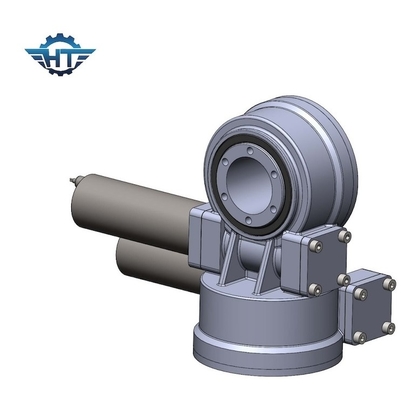

The Dual Axis Slew Drive is designed to provide superior tracking precision with an accuracy of 0.15 degrees. This ensures that your machinery always stays on track, allowing you to focus on getting the job done without worrying about any errors or inaccuracies. The motor voltage of 24V DC ensures that the drive is efficient and reliable, delivering consistent performance every time.
Our Hydraulic Slew Drive is versatile and can be shipped by air, train, sea, or express, making it easy to transport and install wherever and whenever you need it. Its dual-axis design allows for smooth and precise rotation, making it perfect for use in a wide range of applications, including solar trackers, wind turbines, and satellite dishes.
Invest in the Dual Axis Slew Drive today and experience the benefits of its superior performance and reliability. Get in touch with us to learn more about this product and how it can benefit your machinery needs.
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |

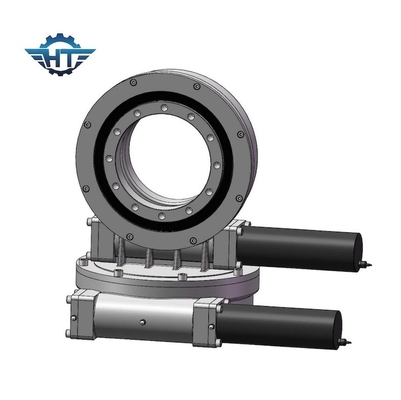

The Dual Axis Slew Drive is an enclosed slewing drive that allows for smooth and precise movement in two axes, making it ideal for a range of occasions and scenarios. Its versatility makes it suitable for use in solar tracking systems, wind turbines, satellite and radar dishes, and construction equipment, among others.
The 2 Axis Turntable feature of this product allows for the rotation of equipment in two directions, making it ideal for use in applications where complex movements are required. The outside diameter of the product ranges from 3 to 25 inches, offering a range of sizes to suit specific requirements.
The Dual Axis Slew Drive is designed for ease of transportation, with shipping options available by air, train, sea, or express. This ensures that customers can receive their product in a timely and efficient manner without any hassle.
In summary, the Dual Axis Slew Drive from HT is a high-quality and versatile product that is suitable for a range of applications. Its enclosed slewing drive and 2 Axis Turntable features provide smooth and precise movement, while its durability and resistance to harsh environments make it a reliable option. With a range of sizes available and various shipping options, this product is a convenient and effective solution for customers worldwide.
HT offers product customization services for the Dual Axis Slew Drive from Changzhou, China. Our Electric Slew Drive product is equipped with a 24V DC motor, the stepper motor, servo motor, hydraulic motor are also available. Our Slew Drive product offers a speed range from 0 to 1 rpm, for very light weight, the speed can up to 5 rpm.
