Product Details:
|
| Protection Level: | IP66 | Tracking Precision: | 0.15 Degree |
|---|---|---|---|
| Type: | Dual Axis Slew Drive | Efficiency: | 40% |
| Shipping: | By Air, Train, Sea, Express | Standard Color: | RAL9006 |
| Structure: | Worm And Wormwheel | Inspect Report: | Yes |
| Highlight: | Electric Dual Axis Slew Drive,Compact Dual Axis Slew Drive,slewing drive for solar tracking system |
||

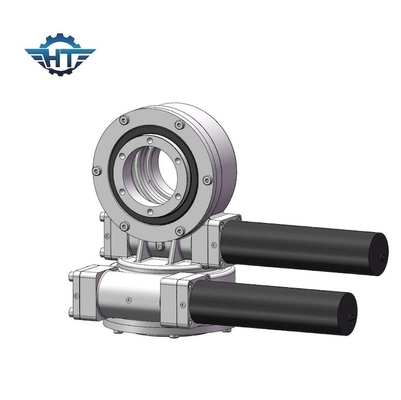

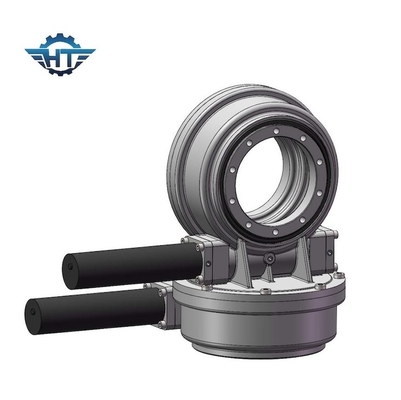

The Dual Axis Slew Drive is a 2-axis turntable that is designed to provide exceptional performance in a wide range of applications. It is a hydraulic slew drive that is built to last and can withstand even the harshest conditions. The enclosed slewing drive provides high torque and high power density, making it an excellent choice for heavy-duty applications.
The Dual Axis Slew Drive is designed to be easy to install and maintain. It comes with an IP66 protection level, which ensures that it is resistant to dust, water, and other environmental factors. This makes it suitable for use in a variety of different industries, including construction, mining, and energy.
One of the key features of this product is its speed range, which can be adjusted from low to high depending on your specific needs. This makes it an incredibly versatile product that can be used in a wide range of different applications.
The product can be shipped by air, train, sea or express, making it easy to receive your order in a timely manner. Additionally, it has an optional 24V DC motor that can be included to suit your specific requirements. This makes it an incredibly flexible product that can be customized to meet your needs.
In summary, the Dual Axis Slew Drive is a top-quality product that provides exceptional performance and durability. It is ideal for use in a wide range of different industries and applications, including construction, mining, and energy. With its high torque and high power density, it is capable of handling even the heaviest loads with ease and precision. So if you are looking for a reliable, efficient, and easy-to-use product for your slewing needs, the Dual Axis Slew Drive is the perfect choice for you.
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
The Dual Axis Slew Drives from HT are self-locking, which means they can hold their position without the need for an external brake or lock. This feature makes them ideal for applications where safety and reliability are paramount, such as in solar tracking systems, wind turbines, and heavy-duty machinery.
The outside diameter of HT's Dual Axis Slew Drive products ranges from 3 to 25 inches, making them suitable for a wide variety of applications. Their compact design allows them to fit into tight spaces, while their high load capacity and torque make them ideal for heavy-duty applications.
The Dual Axis Slew Drive products from HT are designed for 2-axis turntable applications, where precise positioning and smooth rotation are required. They can be used in a variety of scenarios, such as in construction machinery, mining equipment, and marine applications.
The efficiency of HT's Dual Axis Slew Drive products is an impressive 40%, which means they can convert a high percentage of input power into rotational power. This high efficiency makes them an excellent choice for applications where energy conservation is important.
One of the key features of HT's Dual Axis Slew Drive products is their self-locking gear. This feature ensures that the drive remains stationary when not in use, which helps to prevent wear and tear on the drive components. It also makes them ideal for applications where safety is a concern, such as in heavy-duty machinery.
