Product Details:
|
| Maximum Holding Torque: | 12240 Nm | Rated Output Torque: | 11016 Nm |
|---|---|---|---|

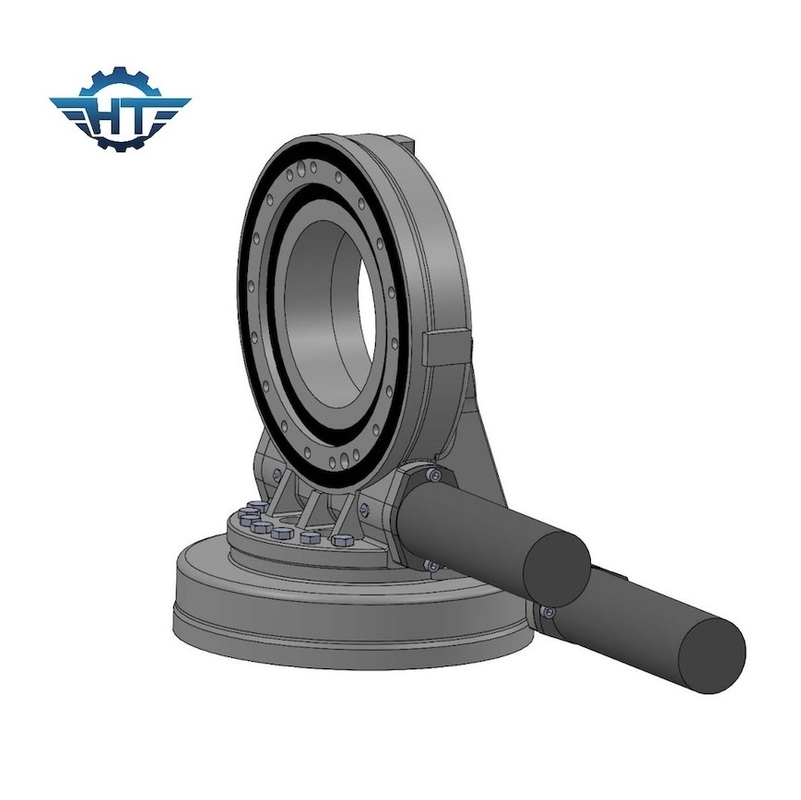

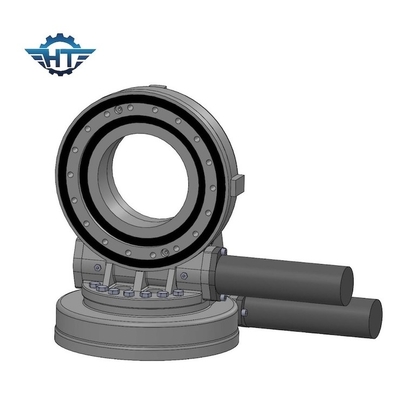

| Type: | Dual Axis Slew Drive | Efficiency: | 40% |
| Outside Diameter: | 3-25 Inches | Tilting Moment Torque: | 16350 Nm |
| Tracking Precision: | 0.15 Degree | Shipping: | By Air, Train, Sea, Express |
| Highlight: | Solar Trackers Slewing Drive,Enclosed Slewing Drive,0.15 Degree Slewing Drive |
||
One of the standout features of this dual axis slew drive is its self-locking gear. This feature ensures that the drive remains stable and secure, even when it is not in use. This is an important safety feature that helps to prevent accidents and damage to the machinery, and it also ensures that your equipment remains in good working condition for longer periods of time.
The dual axis slew drive has a rated output torque of 11016 Nm, making it a powerful and efficient solution for a wide range of applications. It is also available with a 24V DC motor, which makes it easy to integrate into your existing machinery and equipment. This optional motor is a great choice for those who are looking for a more energy-efficient solution.
The dual axis slew drive is built to withstand harsh environments and is rated IP66, which means that it is protected against dust, water, and other contaminants. This level of protection ensures that the drive will continue to operate reliably, even in the toughest conditions.
Overall, the dual axis slew drive is an excellent choice for those who are looking for a reliable and efficient solution for their machinery needs. Its self-locking gear, powerful output torque, and IP66 rating make it a standout product in its class. Whether you are working in construction, agriculture, or any other industry that requires heavy-duty machinery, this product is sure to meet your needs.
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
One of the most common applications of the Dual Axis Slew Drive is in solar tracking systems. These systems require a product that can withstand the elements while still providing reliable and accurate movement. The Dual Axis Slew Drive is perfect for this application since it can be used to rotate solar panels to follow the sun's movement throughout the day. This ensures that the panels are always facing the sun and producing the maximum amount of energy possible.
The Dual Axis Slew Drive is also useful in wind power systems. These systems require a product that can rotate the blades of a wind turbine to face the wind direction. The Dual Axis Slew Drive is an ideal solution for this need since it can provide the necessary torque to rotate the blades while still remaining protected from the elements.
Another application of the Dual Axis Slew Drive is in heavy equipment, such as cranes and excavators. These machines require a product that can provide precise and reliable movement while still being able to handle heavy loads. The Dual Axis Slew Drive can be used to rotate the boom of the crane or the arm of the excavator, providing the necessary movement for these machines to operate efficiently.
In conclusion, the Dual Axis Slew Drive is a versatile and reliable product that can be used in a variety of applications. Its IP66 rating makes it suitable for use in harsh weather conditions, while its self-locking and tilting moment torque capabilities make it ideal for heavy equipment and solar and wind power systems. If you're looking for a product that provides precise and reliable movement, the Dual Axis Slew Drive is an excellent choice.
