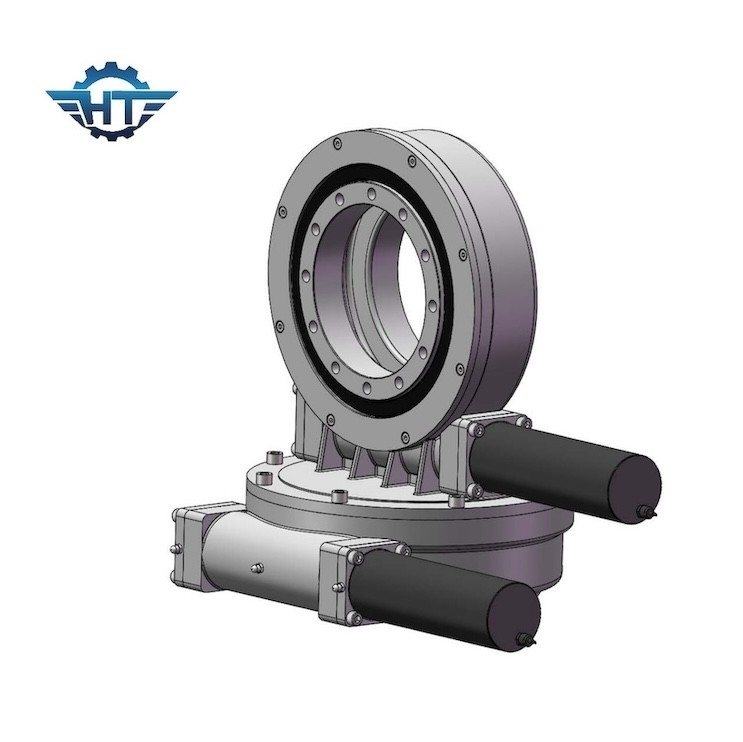

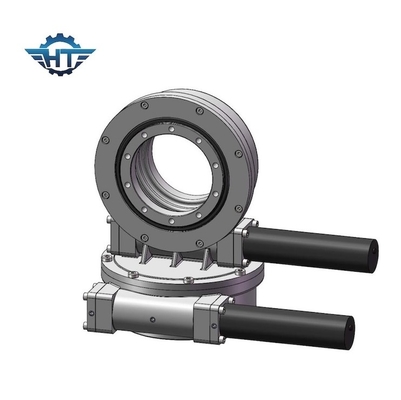

Product Details:
|
| Tracking Precision: | 0.15 Degree | Motor: | 24V DC(Optional) |
|---|---|---|---|
| Outside Diameter: | 3-25 Inches | Type: | Dual Axis Slew Drive |
| Shipping: | By Air, Train, Sea, Express | Motor Voltage: | 24V DC |
| Feature: | Self Locking Gear | Efficiency: | 40% |
| Highlight: | 0.15° Tracking Accuracy Slew Drive,Self Locking Gear Slew Drive,Precision dual axis slew drive |
||
With an IP66 protection level, this Dual Axis Slew Drive is built to withstand the toughest environmental conditions. It is resistant to dust, water, and other harsh elements, making it ideal for use in outdoor applications.
Boasting a 40% efficiency rating, this Dual Axis Slew Drive is highly efficient, ensuring that your turntable operates smoothly and reliably. This drive system is also self-locking, providing added stability and security for your turntable applications.
Whether you're building a new 2 axis turntable or upgrading an existing one, the Dual Axis Slew Drive is the perfect choice. With its impressive holding torque, high level of protection, and efficient performance, this electric slew drive is sure to provide the stability and precision you need for your turntable applications.
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
The HT Dual Axis Slew Drive is capable of delivering a rated output torque of 2000 Nm, which makes it ideal for applications that require high torque output. It also offers a tracking precision of 0.15 degrees, which ensures accurate positioning and smooth operation.
The Dual Axis Slew Drive is suitable for use in a wide range of applications and scenarios. It is commonly used in solar tracking systems, where it helps to improve the efficiency of solar panels by adjusting their angle to the sun's position. It is also used in wind turbines to adjust the angle of the blades, thus optimizing power generation.
Other applications of the HT Dual Axis Slew Drive include construction machinery, agricultural machinery, and marine equipment. It is also used in the defense and aerospace industries to control the movement of radar antennas and other equipment.
The HT Dual Axis Slew Drive is designed to provide reliable and efficient performance in harsh environments. It has a protection level of IP66, which means that it is protected against dust and water ingress. This makes it suitable for use in outdoor applications, where it may be exposed to rain, dust, and other environmental factors.
The Dual Axis Slew Drive can be shipped by air, train, sea, or express, depending on the customer's requirements. This ensures that customers can receive their products quickly and efficiently, no matter where they are located.
In conclusion, the HT Dual Axis Slew Drive is a versatile and reliable product that is used in various industries and applications. Its high torque output, precise tracking, and robust design make it an ideal choice for customers who require precise and efficient movement control.
