Product Details:
|
| Feature: | Self Locking Gear | Protection Level: | IP66 |
|---|---|---|---|
| Tracking Precision: | 0.15 Degree | Ip Grade: | IP66 |
| Tilting Moment Torque: | 1500 Nm | Shipping: | By Air, Train, Sea, Express |
| Motor: | 24V DC(Optional) | Speed Range: | Low To High |
| Highlight: | Self Locking Dual Axis Slew Drive,IP66 Rated Slew Drive,IP66 Dual Axis Slew Drive |
||

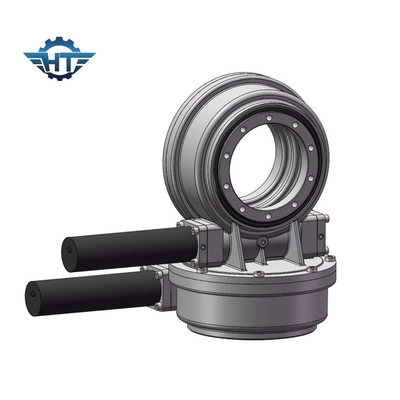

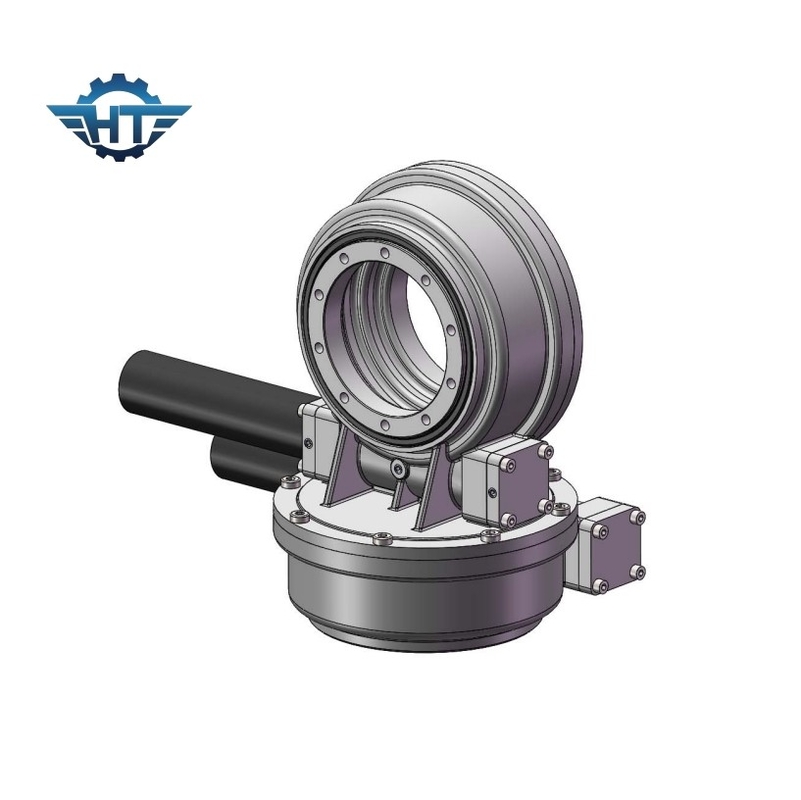

With a tilting moment torque of 1500 Nm, this dual axis slew drive can handle heavy loads and provide smooth and stable motion. It is compatible with a 24V DC motor, which is optional and can be added to provide additional power and control.
This dual axis slew drive is perfect for applications that require precise and controlled motion, such as solar trackers, wind turbines, and satellite dishes. Its compact design and high torque make it a versatile and reliable solution for a variety of industries and applications.
In summary, the Dual Axis Slew Drive is a powerful and efficient solution for 2 axis turntables, with an efficiency of 40%, and a tilting moment torque of 1500 Nm. Its compatibility with a 24V DC motor makes it a flexible and customizable option for a variety of applications. Whether you need to rotate less than 10 square meters solar panels or achieve precise motion control, the SDE3 Dual Axis Slew Drive is a reliable and effective solution that can meet your needs.
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
The Dual Axis Slew Drive is powered by a 24V DC motor, providing reliable and efficient performance for your machines and equipment. With a tracking precision of 0.15 degree, this product ensures that your machines and equipment operate with precision and accuracy, minimizing errors and improving overall productivity.
The speed range of the Dual Axis Slew Drive is low to high, which makes it a versatile product that can be used in various applications. Whether you need to operate at low or high speeds, this product can deliver the necessary performance to meet your needs.
The outside diameter of the Dual Axis Slew Drive ranges from 3 to 25 inches, ensuring that it can be used in a wide range of machines and equipment. The product is also capable of holding a maximum torque of up to 80,000 Nm, providing the necessary power to move heavy loads with ease.
The Dual Axis Slew Drive is suitable for a wide range of applications and scenarios. It can be used in solar trackers, wind turbines, construction equipment, cranes, and many other machines and equipment. Its versatility and reliability make it an ideal solution for any project or application that requires precision, efficiency, and durability.
In conclusion, if you are looking for a high-quality and reliable Dual Axis Slew Drive, the HT product is the right choice for you. It is a versatile and efficient product that can deliver the performance you need to meet your project's requirements. Contact us today to learn more about our Dual Axis Slew Drive and other Enclosed Slewing Drive products.
