Product Details:
|
| Model: | VE7" | Gear Ratio: | 57:1 |
|---|---|---|---|
| Rated Output Torque: | 1750Nm | Holding Torque: | 13200Nm |
| Tilting Torque: | 7000Nm | Enclosed Housing: | Yes |
| Input Power: | AC/DC | Input Voltage: | 24 V |
| Highlight: | vertical worm gear slew drive,envelope worm gear slew drive,CE slew drive for solar tracker |
||

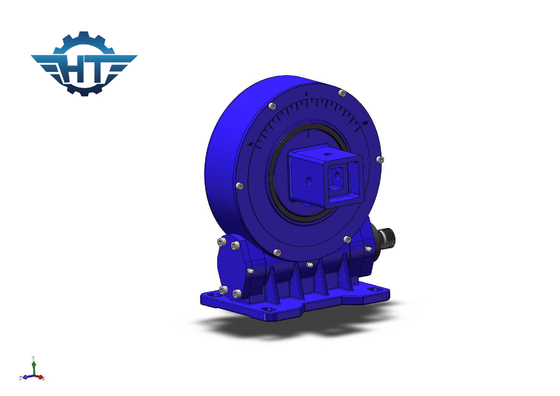

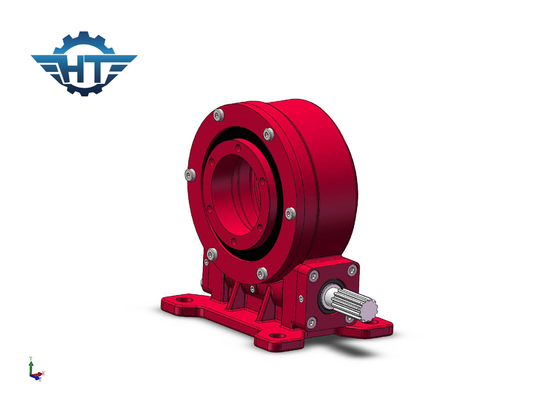

CE Vertical Envelope Worm Gear Slew Drive For Solar Tracker
Envelope Worm Gear Slew Drive Description
Since the core component of the drive device adopts a slewing bearing, it can simultaneously bear the effects of axial force, radial force and tilting moment. Compared with traditional rotary products, it has the characteristics of simple installation, easy maintenance, and saving installation space to a greater extent.
Technical Data of VE Slewing Drive
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Advantages
1. High backholding torque to improve the solar tracking system's safety
2. 360 degree or +60~-60 rotating range, or as customers' request
3. Enveloping worm drive inside
4. Multi tooth contact to ensure high load
5. Self-locking function
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
Glossary of Key Paramaters
Tilting Moment Torque: This torque is the gravity load multiplied by distance between the position of load and the center of slewing bearing. If the actual torque is greater than the rated tilting moment torque, slewing drive will be overturned.
Radial load: The load vertical to the axis of slewing bearing
Axial load: The load parallel to the axis of slewing bearing
Holding torque: It is the reverse torque.When the drive is rotating reversely, and parts are not damaged,The maximum torque achieved is called holding torque, it is also seen as broken torque.
Self-locking: Only when there is load, the slewing drive is not able to reverse rotate and thus called self-locking.
