Vertical Worm Gear Slewing Drive With Stepper Motor And Driver For CPV And CSP

Certification
China Changzhou Hangtuo Mechanical Co., Ltd certification
China Changzhou Hangtuo Mechanical Co., Ltd certification
I'm Online Chat Now

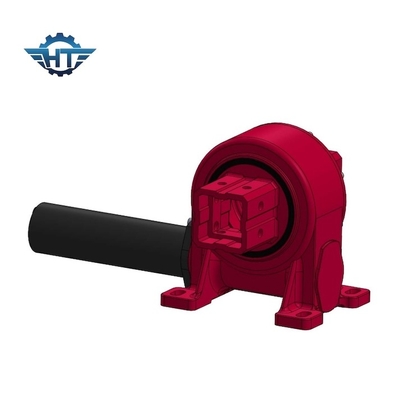

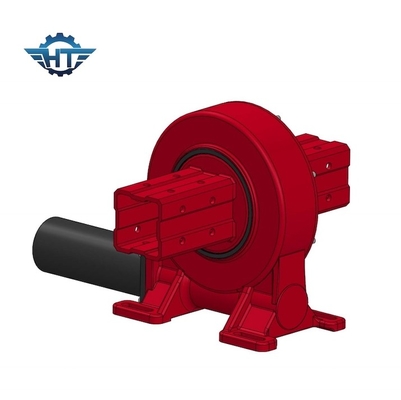

Vertical Worm Gear Slewing Drive With Stepper Motor And Driver For CPV And CSP

Vertical Worm Gear Slewing Drive With Stepper Motor And Driver For CPV And CSP
Vertical Worm Gear Slewing Drive With Stepper Motor And Driver For CPV And CSP Vertical Worm Gear Slewing Drive With Stepper Motor And Driver For CPV And CSP

Large Image :  Vertical Worm Gear Slewing Drive With Stepper Motor And Driver For CPV And CSP

Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month

Vertical Worm Gear Slewing Drive With Stepper Motor And Driver For CPV And CSP

Description
Worm Gear Reduction: VE9 Gear Ratio: 61:1
Application: Solar Tracking System Place Of Origin: Changzhou, China
Driver: DC Motor Certificate: ISO9001, CE
Structure: Worm And Gear Maintenance: Easy
Highlight:

CPV Vertical Slewing Drive

,

CSP Vertical Slewing Drive

,

CPV worm gear slew drive

Vertical Worm Gear Slewing Drive With Stepper Motor And Driver For CPV And CSP



Worm Gear Reduction Gearbox​ Description



Function

Slewing drives function with standard worm technology, in which the worm on the horizontal shaft acts as the driver for the gear, in general, the shaft is driven by electric gear motor.



Gear ratio

The rotation of the horizontal worm turns a gear about an axis perpendicular to the screw axis. This combination reduces the speed of the driven member and also multiplies its torque; increasing it proportionally as the speed decreases.The speed ratio of shafts depends upon the relation of the number of threads on the worm to the number of teeth in the worm wheel or gear.



VE9 Worm Gearbox Slewing Drive Specification



Model VE9 Place of Origin Changzhou,China
Brand HANGTUO Type Enclosed
Material 42CrMo,50Mn Output Torque 4300 N.m
Tilting Moment Torque 16 K N.m Holding Torque 27.2 K N.m
Static Axial Rating 60 KN Static Radial Rating 130 KN
Dynamic Axial Rating 30 KN Dynamic Radial Rating 65 KN
Gear Ratio 61:1 Efficiency 40%



VE9 Speed Reducer Applications



solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.
