Product Details:
|
| Material: | Cast Iron | Model: | 9 Inch |
|---|---|---|---|
| Gear Ratio: | 61:1 | Efficiency: | 40% |
| Precise: | ≤ 0.1 | Axis: | Vertical Single |
| Color: | As Requested | Holding Torque: | 30800 Nm |
| Highlight: | solar slew drive,slewing drive for solar tracking system |
||

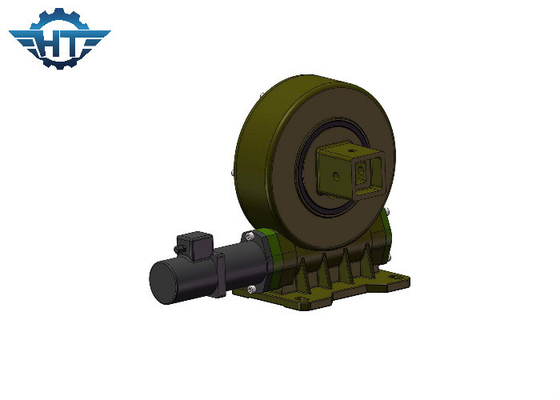

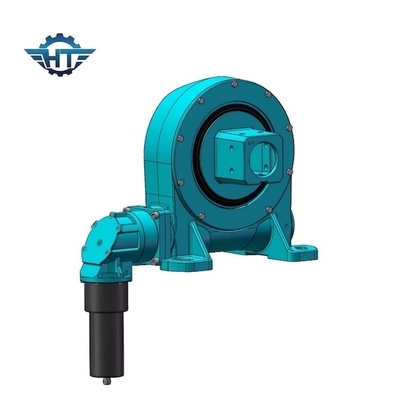

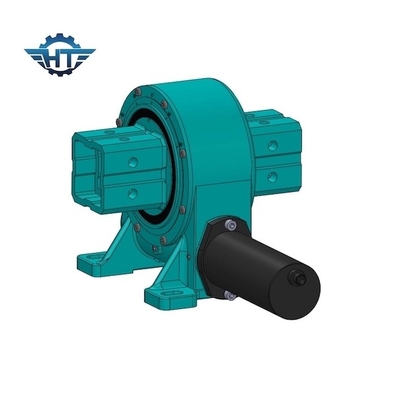

Vertica Worm Drive Slew Ring IP66 Protection Grade For Flat Single Axis Solar Tracker
Worm Drive Slew Ring Description
slewing gears help make solar installations more effective and profitable by supporting movement in both single and dual-axis solar trackers. Moving enormous solar tracking systems requires slewing gearboxes that offer both multi-plane load-holding and rotational torque. Slewing drives that engage a greater number of teeth offer more contact and high and strong torque.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes |
251 kg |
Application
The slewing drive solar trackers for solar industry.
Solar axis trackers move solar panels such that they get more solar access and create more power. They can be single axis or dual axis.
Our custom solutions for the solar industry help harness the sun’s power in an efficient and cost-effective manner. Our slewing drives and worm gear drives deliver the highest dynamic and static torque load capacity in a small package. In applications where pointing accuracy is critical, our double-enveloping worm gear technology provides precision and accuracy, with absolute zero backlash available.
Powered with hourglass worm technology for maximum gear torque and the smoothest rotation. The slew drive applications also include, truck cranes, man lifts, utility equipment, hydraulic attachments, oil tool equipment, marine cranes, tire handlers, digger s and automotive lifts, wind energy, satellite, robot etc.
