Product Details:
|
| Material: | Cast Iron | Model: | VE9" |
|---|---|---|---|
| Gear Ratio: | 61:1 | Noise Level: | Low |
| Power: | Electric | Product Name: | Vertical Slewing Drive |
| Size: | Small | Torque: | High |
| Highlight: | hydraulic slew motor,slewing gear |
||

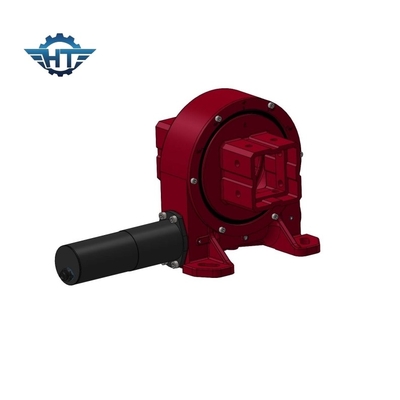

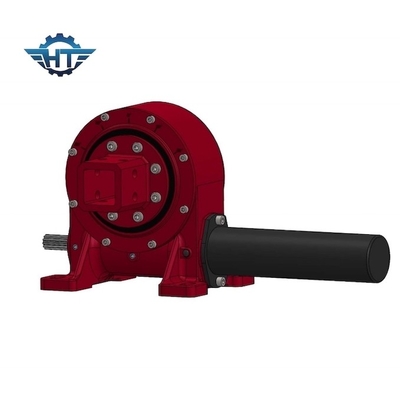

VE9 Solar Tracker Drive High Output Torque With 110×110 MM Output Square Tube
VE9 Solar Tracker Drive Description
The VE9 slew drive with 110×110 mm and 94×94 mm square output tube which is perfectly used flat single axis solar tracking system. It features high IP grade which could protect the drive from various environment conditions such as dust, water, sand etc. We are manufactured based on the standard which is required in the ISO9001 system. We also passed CE certifications. The slew drive has a long lifespan; it is designed for 30 years using life. We provide the whole lifespan technical support and 36 months to 60 months warranty based on different types of slew drives
Technical Data
| Model | VE9 | Place of Origin | Changzhou,China |
| Brand | HANGTUO | Type | Enclosed |
| Material | 42CrMo,50Mn | Output Torque | 2250 N.m |
| Tilting Moment Torque | 16 KN.m | Holding Torque | 30.8 KN.m |
| Static Axial Rating | 60 KN | Static Radial Rating | 130 KN |
| Dynamic Axial Rating | 30 KN | Dynamic Radial Rating | 65 KN |
| Gear Ratio | 61:1 | Efficiency | 40% |
Advantages
1. High backholding torque to improve the solar tracking system's safety
2. Hard stop inside in case the mulfunctioning of the software control system
3. Enveloping worm drive inside
4. Multi tooth contact to ensure high load
5. Self-locking function
6. Square tube output 110*110 mm
