Product Details:
|
| Material: | Cast Iron | Model: | 3 Inch |
|---|---|---|---|
| Gear Ratio: | 31:1 | Efficiency: | 40% |
| Precision: | Less Than 0.1 Degree | Driver: | Electric Motor/hydraulic Motor/servo Motor |
| Color: | As Requested | Feature: | Heat Resistance And Corrosion Resistance |
| Type: | Vertical | Place Of Origin: | Changzhou, China |
| Highlight: | slew drive motor,worm gear slew drive |
||

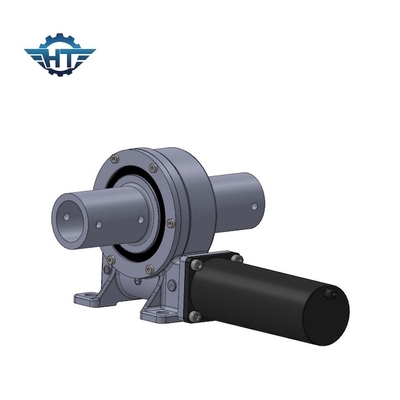

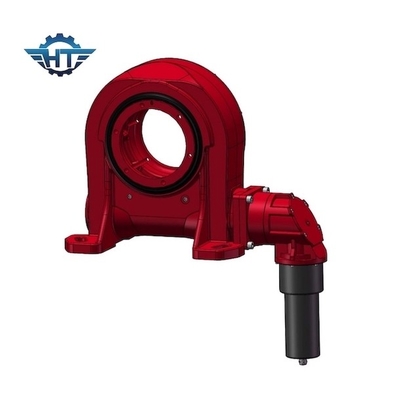

Worm Gear Small Backlash Slewing Drive With Hourglass Worm For Trough Thermal Station
Small Backlash Slewing Drive Description
Product Name: VE7
Normal Output Speed: 0.03RPM
Normal Output Torque: 7320 N.m
Max Output Torque: 10980 N.m
Tilting Moment Torque: 8 kN.m
Holding Torque: 39 kN.m
Static axial load: 30 kN
Static radial load: 100 kN
Slewing Drive Ratio: 51:1
Backlash clearance: ＜＝0.15°
IP(Class): 66
Efficiency: 40%
Temperature: -40℃ to+120℃
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Application scope
Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.
