Product Details:
|
| Gear Ratio: | 31:1 | Material: | Cast Iron |
|---|---|---|---|
| Model: | SDE3 | Mounting Method: | Flange |
| Operating Temperature: | -40℃~+120℃ | Output Speed: | ＜1 Rpm |
| Product Name: | Vertical Slewing Drive | Protection Level: | IP66 |
| Highlight: | worm gear slew drive,slewing ring gear |
||

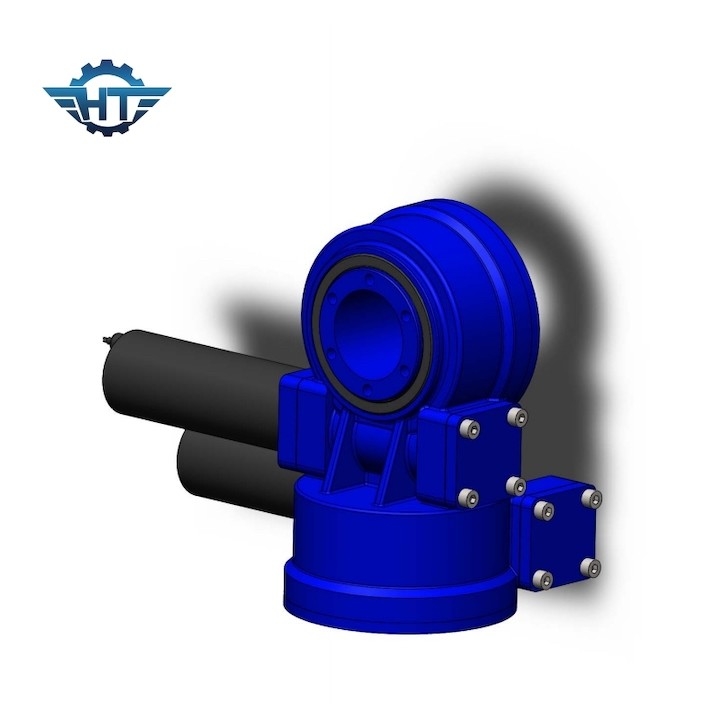

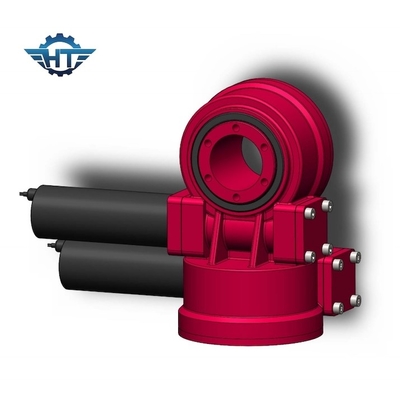

High Precision SDE3 Slewing Drive Gearbox for Dual Axis Solar Tracking System
High Precision SDE3 Slewing Drive Description
Slew drives are used for concurrent transmission of axial and radial forces as well as transmission of tilting moments. Slewing drives consist of envelope worm, meshing gear, hydraulic or electric drivers, and a completely enclosed housing. All of our series are designed with hourglass worm gear.
Technical Data of SDE Model Slewing Drive
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 5800 | 10 | 15 | 40% | ≤0.1 | Yes | 25 |
| 5" | 37:1 | 800 | 6000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 34 |
| 7" | 57:1 | 2000 | 7500 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 56 |
| 9" | 61:1 | 4300 | 16000 | 27200 | 60 | 130 | 40% | ≤0.1 | Yes | 92 |
| 12" | 78:1 | 5800 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 160 |
| 14" | 85:1 | 6750 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 224 |
| 17" | 102:1 | 9460 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 320 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 492 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 705 |
Features
1. High backholding torque to improve the solar tracking system's safety
2. Enveloping worm drive inside
3. Multi tooth contact to ensure high load
4. Self-locking function
Application
Dual axis slewing drives are used in dual axis solar trackers, heliostats, tower heat concentrated generators, concentrated photovoltaics (CPV), dish generator and satellite antenna.
1. slewing drive for dual axis solar tracking system
2. slewing drive for satellite tracking system
3. slewing drive for concentrate PV tracking system
Q&A
1. How can i choose?
Please specify the wheel diameter size, width, voltage, power and no-load speed of the required motors.
2. Could I take samples to test quality and market in advance?
Sure, welcome to take samples to test our quality and service.
3. What's the total cost for samples?
Total sample cost= sample cost + freight
We will give you the best shipping cost after you choose the suitable gear motors
4. How do you ship samples?
Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex
5. What's your minimum order quantity?
10 sets after samples confirmed
6. What's your delivery time?
For standard samples: within 7days; for batch orders: within 25 days.
