Product Details:
|
| Model: | 9 Inches | Gear Ratio: | 61:1 |
|---|---|---|---|
| Application: | Adjustable Mount Bracket | Place Of Origin: | Changzhou, China |
| Driver: | Hall Sensors Gear Motor | Installation: | Vertical |
| Color: | As Requested | Backlash: | 0.15° |
| Highlight: | Reverse Self Locking Slew Ring Drive,Hall Sensor Worm Gear Slewing Ring,Reverse Self Locking worm slew drive |
||

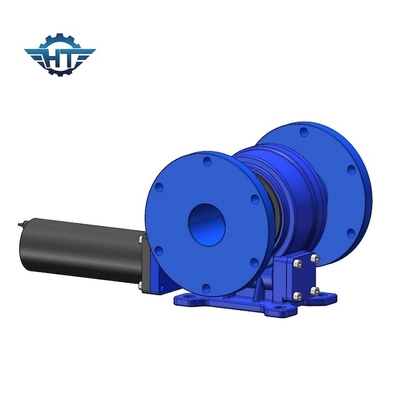

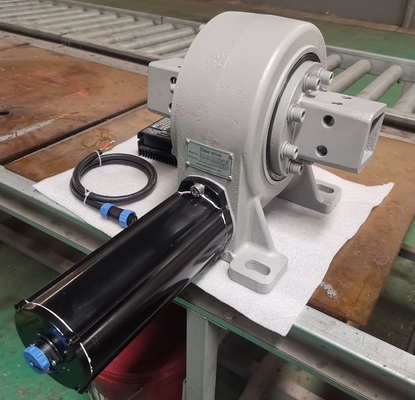

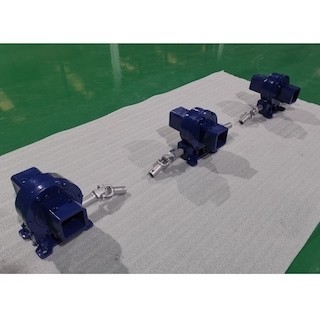

9 Inches Reverse Self Locking Worm Gear Slewing Ring For Adjustable Mount Bracket
Self Locking Worm Gear Slewing Ring Description
A distinctive feature of the rotary worm gear drive is the feature between static self-locking and dynamic self-locking. When the startup efficiency ηA ≤ 0.5, static self-locking exists. At this time, it is impossible to drive the worm by rotating the slewing bearing. Sometimes, this self-lock can be invalidated by some external force such as external vibration. At this time, the worm can be driven by the rotary slewing bearing. When the operating mechanical efficiency η ≤ 0.5, the helix angle γm=2.5°~4°, which can achieve dynamic self-locking (that is, automatic locking during movement), which can be achieved by relying on the contact stress and friction of the tooth surface.
In many drive systems, self-locking is very important. In general, using additional brakes or blocks is the most common method. Self-locking gears cannot completely replace the role of brakes. The rotary worm gear drive is static self-locking. In some special cases, such as earthquakes, the self-locking is still effective when there is a tendency to reverse rotation. Our slewing drive has features of reverse self-locking because of worm gear self-locking characteristics. This feature greatly enhances the stability of the host operating and safety factor. Compared to the traditional swing products, slewing drive gearbox is easy to install, easy to maintain, and saves considerable installation space.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Advantages
1. Strong overturning moment based on slewing ring
2. Adopt enveloping worm drive
3. Drive larger load for using multi tooth contact
4. Better static self-locking function
