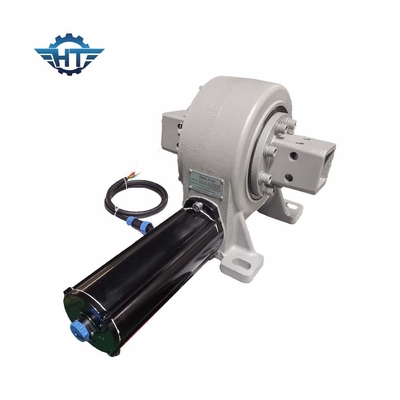

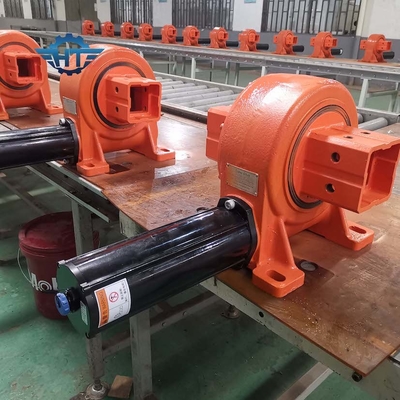

Vertical Single Axis Slew Drive With For Small Backlash Solar Tracking Systems
Vertical Single Axis Slew Drive Description
Due to the use of slewing bearing and annular worm structure, the solar tracking rotary drive device can achieve multi-tooth contact, has the characteristics of large transmission torque and stable operation; it can withstand large radial and axial loads and strong overturning. Torque (anti-wind resistance) is being widely used in solar photovoltaic power generation tracking systems and other new energy industries by domestic and foreign customers. The products currently have 9 models ranging from 3 inches in diameter to 25 inches in diameter, and more than 60 varieties, which can meet the needs of different forms of photovoltaic, photoelectric, photothermal ordinary and precision tracking.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
1. SE1, SE3, SE5, SE7, SE9, SE12, SE14, SE17, SE21 for Flat single axis linkage. This kind of system is suitable for latitudes below 30 degrees and ground slopes less than 12 degrees.
2. SE1, SE3, SE5, SE7, SE9, SE12, SE14, SE17, SE21 slewing drive for oblique single axis linkage. This kind of it is suitable for systems medium to high latitudes, the ground needs to be approximately flat.
3. SE1, SE3, SE5, SE7, SE9, SE12, SE14, SE17, SE21, VE1, VE3, VE5, VE7, VE8, VE9 slewing drives for oblique single-axis unit. This kind of system is suitable for medium to high latitudes.
4. SDE1, SDE3, SDE5, SDE7, SDE9, SDE12, SDE17, SDE21 slewing drive for dual solar tracking system. This kind of systems are suitable for all kind of landform.
