Product Details:
|
| Material: | 50Mn, 42CrMo | Model: | VE9 |
|---|---|---|---|
| Gear Ratio: | 61:1 | Rated Output Torque: | 6100 Nm |
| Holding Torque: | 36000 Nm | Tilting Torque: | 16300 Nm |
| Trademark: | Neutral, OEM, Customized | Standard Color: | RAL 9006 |
| Highlight: | Vertical Slew Ring Drive 9",110 Tube Slew Ring Drive,Vertical slewing bearing drive 9" |
||

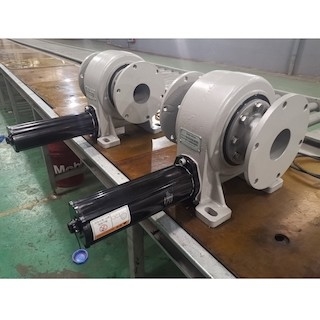

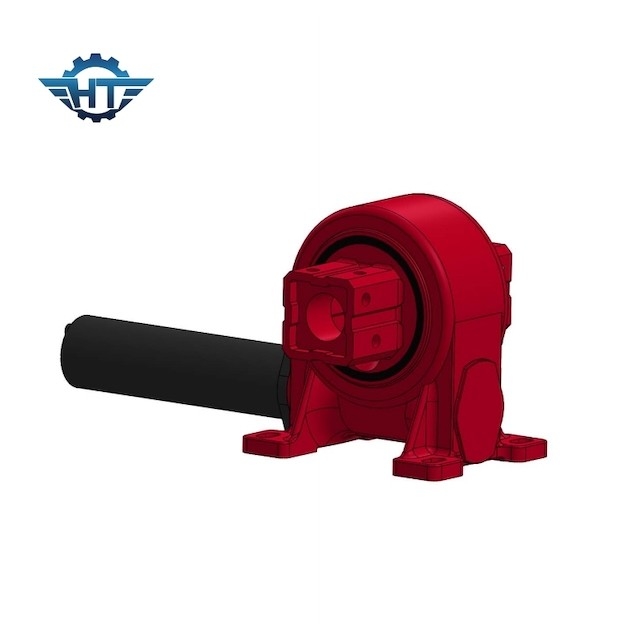

Vertical 9 Inches Slewing Drive With Tube Size 110 For Single Axis Tracking System
Worm Gear Slewing Drive Description
VE9 single-axis slewing drives can rotate around one axis and are of different nominal torque and holding and tilting moment. We can provide both the standard type and customized type based on customers' requirements. It's the easiest to install, and the most commonly used. The VE7 slewing drive offers vertical mounting and a fully-enclosed drive in one high-powered unit.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Product Advantages
1. High backholding torque
2. Self-locking to improve the solar tracking system's safety
2. Hard stop inside
3. Enveloping worm drive inside
4. Multi tooth contact to ensure high load and minimize backlash
