Product Details:
|
| Type: | VE5 Slewing Drive | Material: | 42CRMN Or 50Mn |
|---|---|---|---|
| Application: | Concentrated Solar Trackers | Warranty: | 10 Years |
| Color: | Customer Required | Size: | 3 Inch - 25 Inch |
| Motor: | 24VDC | Feature: | Long Life |
| Highlight: | solar slew drive,slewing drive for solar tracking system |
||

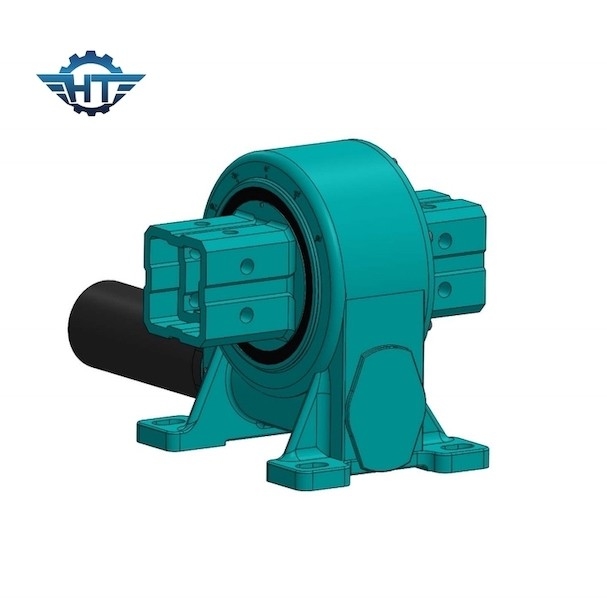

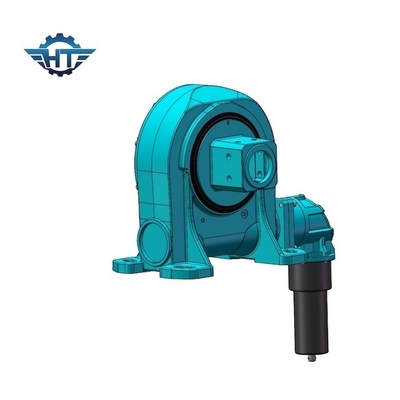

Single Axis Solar Tracker Small Slew Drive For Concentrated Solar Trackers
Small Slew Drive Description
A Slew Drive, commonly referred as a worm drive or slewing bearings, is a complete, ready to install system that consists of gear or slewing ring bearing, worm, base, and completely enclosed housing. It can be customized with hydraulic or electric motors, planetary gearboxes.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Features
1. Rotate from 0~180°
2. Connect a driving motor on the left or right side
3. Grease had been filled before factory
4. Simple installation
5. Rational space utilization
6. The gear is self-locking; therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
8. High backholding torque, suitable for vertical installation
9. Low maintenance
Applications
Photovoltaic power station tracking includes flat single-axis linkage, oblique single-axis linkage, oblique single-axis, and two-axis tracking system.
1. Flat single axis linkage
Suitable for latitudes below 30 degrees and ground slopes less than 12 degrees.
2. Oblique single axis linkage
Suitable for medium to high latitudes, the ground needs to be approximately flat.
3. Oblique single-axis unit
Suitable for medium to high latitudes.
4. Dual axis
Suitable for any latitudes.
