Product Details:
|
| Material: | 50Mn, 42CrMo | Model: | VE9" |
|---|---|---|---|
| Gear Ratio: | 61:1 | Rated Torque: | 4300 Nm |
| Holding Torque: | 27200 Nm | Tilting Torque: | 16000 Nm |
| Efficiency: | 40% | Output: | Flange |
| Highlight: | solar tracker drive,solar slew drive |
||

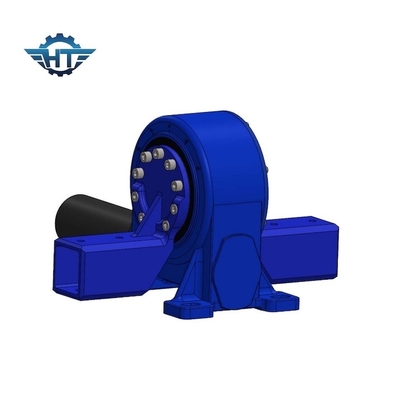

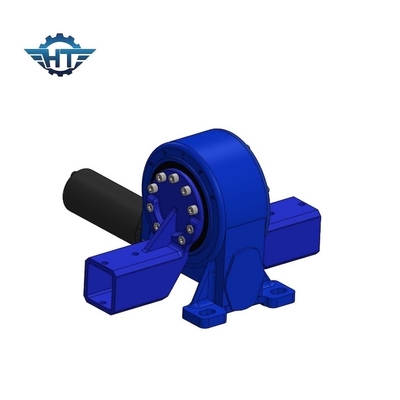

Enclosed Worm Gear Slew Drive With Squre Tube Output For Solar Tracking System
Worm Gear Slew Drive Description
Slewing drives' rotating modules are compact rotational units integrated in a cast iron housing that contains a turning ring with a gear. The gear rotates the turning ring with great precision and allows for smooth rotation and maximum effort. Vertical type slewing drives offers vertical mounting and a fully-enclosed drive in one high-powered unit. It's a essential machinery transmission parts.
We are manufactured based on the standard which is required in the ISO9001 system. We also passed CE certifications. The slew drive has a long lifespan and it is designed for 30 years field using life time.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Advantages
1. High backholding torque
2. Enveloping worm drive inside
3. Multi tooth contact to ensure high load
4. Self-locking function
5. Flange output
