Product Details:
|
| Type: | Slewing Drive Gearbox | Shipping Way: | By Rail, Sea, Air, Express |
|---|---|---|---|
| Lead Time: | 3~45 Days | Size: | 1 Inch To 25 Inches |
| Slewing Motor: | AC, DC, Hydraulic | Painting Color: | Based On Ral Color Card |
| Type Of Tooth: | Helical Tooth | Application: | CSP Tower Power Station |
| Highlight: | 6 Inch Single Axis Slewing Drive,CSP Single Axis Slewing Drive,CSP slew drive gearbox |
||

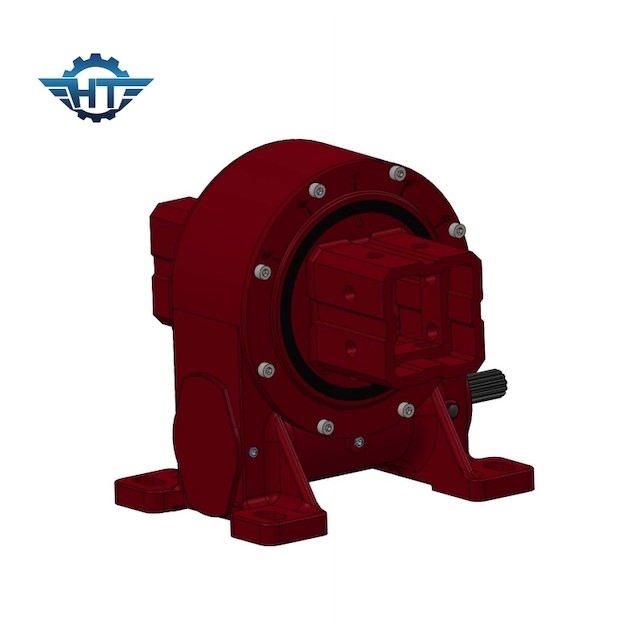

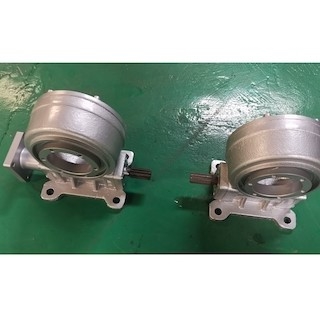

VE6 Single Axis Slew Drive, IP66 Enclosed Enveloping Small Slew Drive For CSP Power Station
Single Axis Slewing Drive Description
The single-axis slewing drive is a mechanical product with an integrated structure composed of a slewing ring, gear, housing and motor (electric motor, hydraulic motor, stepper motor, servo motor), which is used to withstand axial, radial and moment loads. We have also developed high backlash slewing drives specifically for applications requiring high precision.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Customized Services
1. Gear reduction ratio 31:1 to 150:1
2. Horizontal installation, vertical installation or multi-axis combined installation
3. Single worm or double worm
4. Electric or hydraulic motor
5. Sealed housing
6. Can be customized design according to application requirements
