Product Details:
|
| Model: | SDE3 | Gear Ratio: | 31:1 |
|---|---|---|---|
| Application: | Satellite Antenna Dishes | Place Of Origin: | Changzhou, China |
| Motor: | 12/24V DC Motor | Certificates: | ISO9001, CE |
| Installation: | Horizontal Or Vertical | Maintenance: | Free |
| Highlight: | 24VDC Vertical Slewing Drive,Satellite Antenna Dishes Vertical Slewing Drive,Vertical Motor Slewing Gear Drive |
||

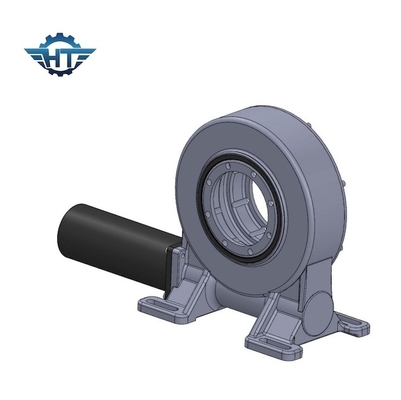

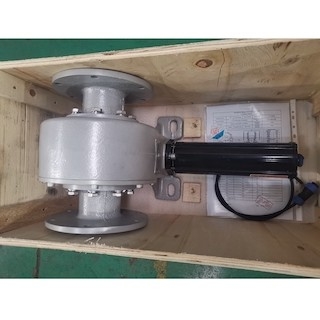

Horizontal Vertical Slewing Drive 24V DC Motor Slewing Gear Drive For Satellite Antenna Dishes
Vertical Slewing Drive Description
By adopting slewing bearing as its core component, slewing drive can bear axial force, radial force and tilting moment imultaneously. Slewing drive is widely applied in modular trailers, all types of cranes, aerial working platform, solar tracking systems and wind power systems.
Electric and planetary gearboxes can be designed according to the customer's requirement . Slewing drive has the advantage for saving space in facilities , max load capacity in a compact design , extensive lifespan, reduced maintenance costs.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Slewing Gear Drive Application
Our slewing drives are manufactured under high-quality control systems and a team of experienced specialists. They are designed and manufactured by innovative fully automatic and semi-automatic production equipment, experienced and qualified engineers. Slewing drives are suitable for applications that require continuous or cyclic motion and are able to handle combined loads: CPV, PV, CSP, satellite dishes, etc. Our products have standard connection sizes for easy and simple connection to electric, hydraulic motors or systems.
Q&A
1. How can i choose?
Please specify the wheel diameter size, width, voltage, power and no-load speed of the required motors.
2. Could I take samples to test quality and market in advance?
Sure, welcome to take samples to test our quality and service.
3. What's the total cost for samples?
Total sample cost= sample cost + freight
We will give you the best shipping cost after you choose the suitable gear motors
4. How do you ship samples?
Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex
5. What's your minimum order quantity?
10 sets after samples confirmed
6. What's your delivery time?
For standard samples: within 7days; for batch orders: within 25 days.
