Product Details:
|
| Reducer And Motor: | VE5, 24VDC | Material: | Wear-resistant |
|---|---|---|---|
| Application: | Solar Tracking Systems | Warranty: | 5~10 Years |
| Color: | As Required | Size: | From 3 To 25 Inches |
| Module: | Worm Gear Module | Feature: | IP66, Long Life |
| Highlight: | Vertical Single Axis Slew Drive,25 Inches Vertical Slew Drive,Wear Resistant Vertical Slew Drive |
||

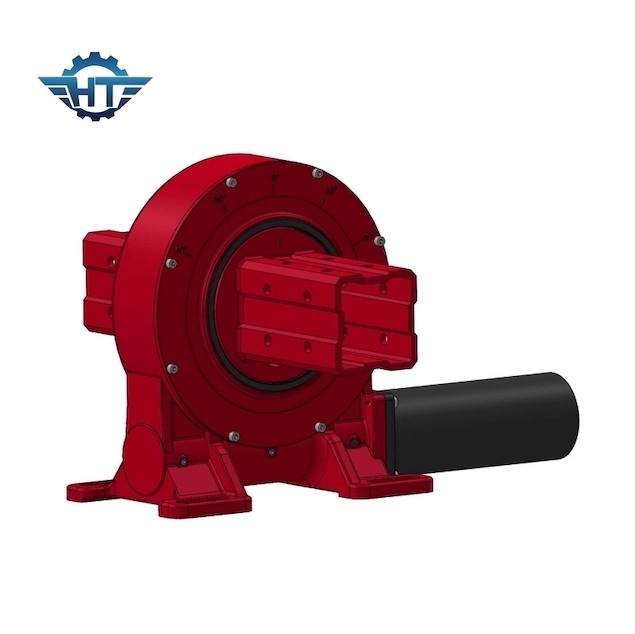

IP66 VE5 24VDC Vertical Single Axis Slew Drive Wear-Resistant 25 Inches
Vertical Single Axis Slew Drive Service
-- Customer can choose the motor according to our already designed slewing drive connect
dimension.
-- We can customized the connection dimension according to customer's motor connect dimension.
-- We can help to provide the whole parts with Hydraulic motor, DC motor, AC motor, Stepper or Servo motor.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Vertical Single Axis Slew Drive Features
Due to the use of slewing bearing and annular worm structure, the solar tracking rotary drive device can achieve multi-tooth contact, has the characteristics of large transmission torque and stable operation; it can withstand large radial and axial loads and strong overturning. Torque (anti-wind resistance) is being widely used in solar photovoltaic power generation tracking systems and other new energy industries by domestic and foreign customers. The products currently have 9 models ranging from 3 inches in diameter to 25 inches in diameter, and more than 60 varieties, which can meet the needs of different forms of photovoltaic, photoelectric, photothermal ordinary and precision tracking.
Applications
1. SE1, SE3, SE5, SE7, SE9, SE12, SE14, SE17, SE21 for Flat single axis linkage. This kind of system is suitable for latitudes below 30 degrees and ground slopes less than 12 degrees.
2. SE1, SE3, SE5, SE7, SE9, SE12, SE14, SE17, SE21 slewing drive for oblique single axis linkage. This kind of it is suitable for systems medium to high latitudes, the ground needs to be approximately flat.
3. SE1, SE3, SE5, SE7, SE9, SE12, SE14, SE17, SE21, VE1, VE3, VE5, VE7, VE8, VE9 slewing drives for oblique single-axis unit. This kind of system is suitable for medium to high latitudes.
4. SDE1, SDE3, SDE5, SDE7, SDE9, SDE12, SDE17, SDE21 slewing drive for dual solar tracking system. This kind of systems are suitable for all kind of landform.
