Product Details:
|
| Material: | Cast Iron | Model: | 7 Inches |
|---|---|---|---|
| Gear Ratio: | 51:1 | Efficiency: | 40% |
| Precise: | ≤ 0.1 | Driver: | Electric Motor |
| Color: | As Requested | Holding Torque: | 39kNm~50kNm |
| Highlight: | Single Axis Vertical Slewing Drive Gear,C3 Coating Vertical Slewing Drive Gear,Vertical Slewing Drive For PV Tracking |
||

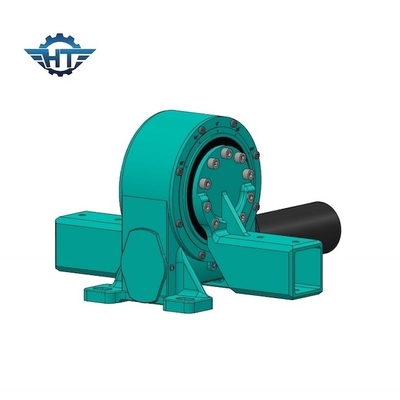

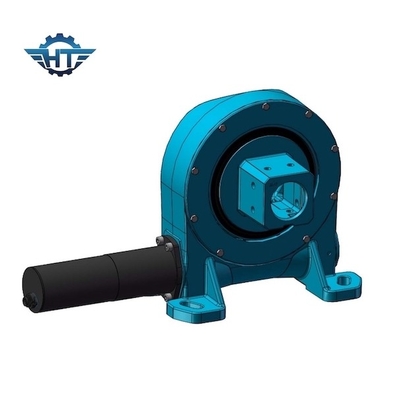

VE7 Single Axis C3 Coating Slewing Gear For PV Tracking System
Slewing Gear Description
Our company have profound expert knowledge and have more than 10 years' experience on designing, developing and manufacturing slewing drives. Our team is specialized in researches and develops in that particular area and covers the fields of tracking technologies for photovoltaic systems, concentrated solar power stations, mechanical engineering and slewing drive technology.
Technical Sheet Of VE Model Slewing Drive
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | Yes | 251 |
Advantages
Quick Reaction Times
Long-term experience in intelligent-process control for mass production as well as in customer-oriented product development.
Various Types
Slewing Drive (Enclosed Type, Vertical Type, Dual Axis Type, Precision Type) Hourglass worm slewing drive is based on the slewing bearing with strong tilting moment torque and static self-locking function. Much tooth contact surface is designed specially for driving high load.
Stable Quality
Set up Critical Quality Inspection Points, Total 9 positions through the plant. We set up critical quality inspection points , make quality inspection instructions to control strictly in key process. We use high precision & measurement gauge calibration.
Sales Drawing
For further detailed product technical parameters, contact us for product catalog and detailed sales drawings.
Applications
The vertical slewing bearing drive is generally installed perpendicular to the ground and is widely used in various photovoltaic power generation projects, such as parabolic or trough Csp power generation, fresnel Csp power generation, flat single axis solar tracking system, oblique solar tracking system. It is with high precision, usually this model with enclosed housing, it can prevent dust and water from entering the inside.
