Product Details:
|
| Material: | Cast Iron | Noise Level: | Low |
|---|---|---|---|
| Product Name: | Vertical Slewing Drive | Torque: | High |
| Efficiency: | 40 % | Input Voltage: | 24 V |
| Mounting Type: | Vertical | Protection Grade: | IP66 |
| Highlight: | ve6 solar tracker drive,ip66 solar tracker drive,solar tracker vertical swing drive |
||
VE6 Solar Tracker Drive: Enclosed, IP Grade IP66, 30-Year Lifespan
VE6 Solar Tracker Drive Description
The slewing ring is a large circular bearing that is designed to handle axial, radial, and moment loads. It typically consists of an inner ring, an outer ring, and rolling elements such as balls or rollers that enable smooth rotation between the inner and outer rings. The slewing ring acts as the primary support structure and allows the slewing drive to withstand high loads and transmit torque.

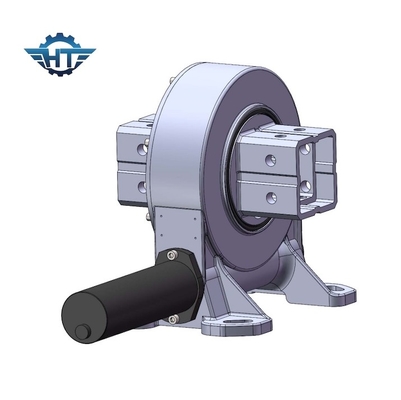

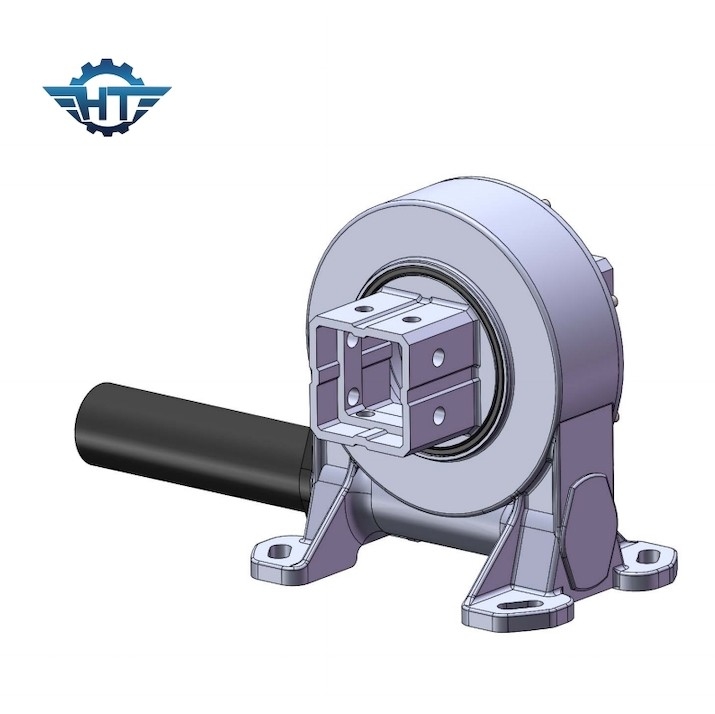

The VE6 slew drive with variable size square output tube which is perfectly used flat single axis solar tracking system. It features IP66 grade which could protect the slewing drive from various environment conditions such as dust, water, sand etc. drives
Technical Sheet Of VE Model Slewing Drive
|
Model |
Ratio |
Rated Output Torque(N.m) |
Tilting Torque(N.m) |
Holding Torque(N.m) |
Axial Load(kN) |
Radial Load(kN) |
Efficiency |
Self-locking |
Weight(kg) |
|
3" |
31:1 |
600 |
1500 |
1800 |
22 |
15 |
40% |
Yes |
12 |
|
5" |
37:1 |
800 |
5000 |
9200 |
16 |
27 |
40% |
Yes |
18 |
|
7" |
57:1 |
1750 |
7000 |
13200 |
34 |
58 |
40% |
Yes |
32 |
|
8" |
51:1 |
2250 |
11200 |
20400 |
50 |
80 |
40% |
Yes |
28 |
|
9" |
61:1 |
2250 |
16000 |
30800 |
60 |
130 |
40% |
Yes |
52 |
|
12" |
78:1 |
4300 |
25000 |
40560 |
77 |
190 |
40% |
Yes |
65 |
|
14" |
85:1 |
5600 |
48000 |
44200 |
110 |
230 |
40% |
Yes |
88 |
|
17" |
102:1 |
6750 |
67000 |
53040 |
142 |
390 |
40% |
Yes |
135 |
|
21" |
125:1 |
16000 |
89000 |
65000 |
337 |
640 |
40% |
Yes |
192 |
|
25" |
150:1 |
21450 |
112000 |
89000 |
476 |
950 |
40% |
Yes |
251 |
Advantages
1. High backholding torque to improve the solar tracking system's safety
2. Hard stop inside in case the mulfunctioning of the software control system
3. Enveloping worm drive
4. Multi tooth contact
5. Self-locking
6. Variable size square tube
