Product Details:
|
| Material: | Cast Iron | Efficiency: | 40% |
|---|---|---|---|
| Driver: | Electric Motor | Color: | As Requested |
| Holding Torque: | 39kNm~50kNm | Input Voltage: | 24 V |
| Output Speed: | 0~1 Rpm | Protection Level: | IP66 |
| Highlight: | ve7 tilting vertical slewing gear,pv system vertical slewing gear,pv system vertical slewing drive |
||

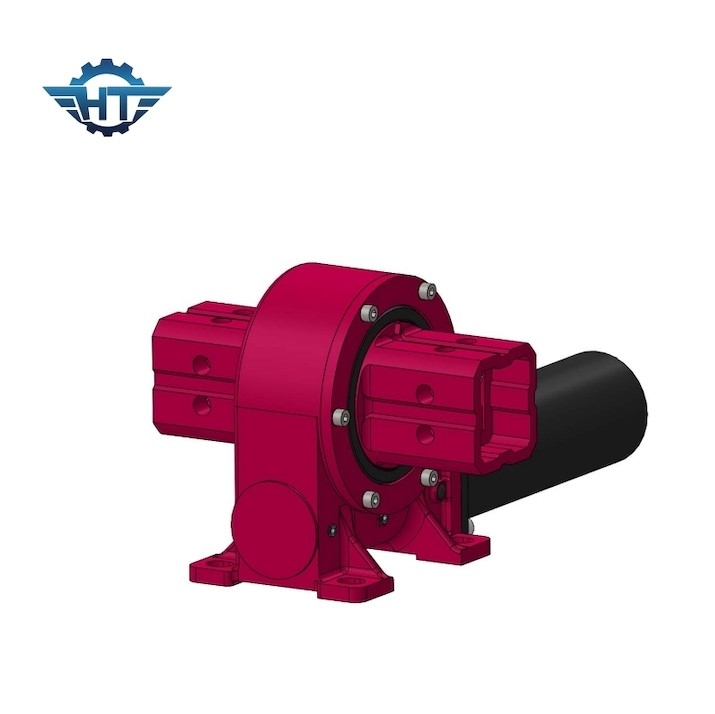

VE7 Tilting Torque 8000N.M Slewing Drive For PV System
Slewing Gear Drive Description
The gear mechanism is integrated with the slewing ring and is responsible for transmitting power and generating the rotational movement. It usually consists of a pinion gear, which is driven by a motor or another power source, and a ring gear that is connected to the slewing ring. The interaction between the pinion and ring gear enables controlled rotation of the slewing drive.
Hangtuo Mechanical has profound expert knowledge and have more than 10 years' experience on designing, developing and manufacturing slewing drives. Our team is specialized in researches and develops in that particular area and covers the fields of tracking technologies for photovoltaic systems, concentrated solar power stations, mechanical engineering and slewing drive technology.
Technical Sheet Of VE Model Slewing Drive
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | Yes | 251 |
Advantages
Long-term experience in intelligent-process control for mass production as well as in customer-oriented product development.
Slewing Drive (Enclosed Type, Vertical Type, Dual Axis Type, Precision Type) Hourglass worm slewing drive is based on the slewing bearing with strong tilting moment torque and static self-locking function. Much tooth contact surface is designed specially for driving high load.
Set up Critical Quality Inspection Points, Total 9 positions through the plant. We set up critical quality inspection points , make quality inspection instructions to control strictly in key process. We use high precision & measurement gauge calibration.
For further detailed product technical parameters, contact us for product catalog and detailed sales drawings.
Applications

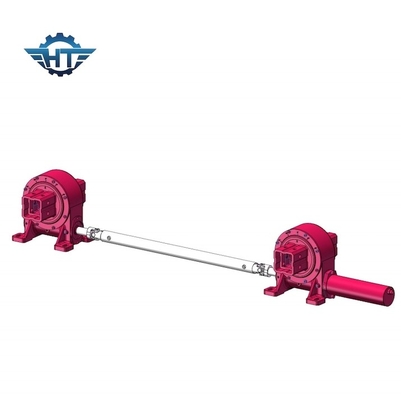

The vertical slewing drive is generally installed to flat land or complex terrain and is widely used in various photovoltaic power generation projects, such as parabolic or trough CSP power generation, fresnel CSP power generation, flat single axis solar tracking system, oblique solar tracking system. It is with high precision, usually this model with enclosed house, it can prevent dust and water from entering the inside.
