Product Details:
|
| Material: | 50Mn, 42CrMo | Output Speed: | Less Than 1 Rpm |
|---|---|---|---|
| Application: | Horizontal Single Axis Solar Tracker | Input Power: | AC/DC |
| Mounting Method: | Flange | Noise Level: | Low |
| Operating Temperature: | Customized | Product Name: | Vertical Slewing Drive |
| Highlight: | oem slew drive gearbox,7" slew drive gearbox,solar tracker slew gear box |
||

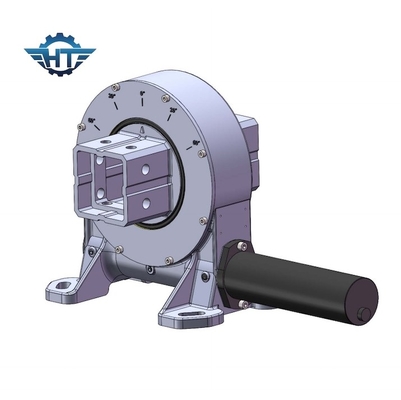

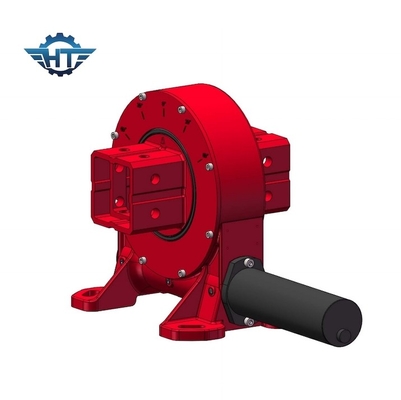

OEM 7" Slew Drive Gearbox, Low Speed For Horizontal Single Axis Solar Tracker
7" Slew Drive Gearbox Description
Solar tracking slewing drives are mechanical devices specifically designed for solar energy systems. They facilitate the movement and positioning of solar panels or mirrors to maximize their exposure to the sun throughout the day. These drives consist of a gearbox and a rotating mechanism that enables precise and continuous tracking of the sun's movement.
VE Model Technical Parameters
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | Yes | 251 |
Applications
Solar Tracking Systems: Slewing drives are extensively used in solar tracking systems, which aim to maximize solar energy capture by orienting solar panels or mirrors toward the sun. The slewing drive enables precise and continuous tracking of the sun's movement, optimizing energy output.
Robotics and Automation: Slewing drives are utilized in robotic systems and automation equipment that require precise and controlled rotational movements. They are commonly used in robotic arms, positioning systems, and automated assembly lines.
Aerospace and Defense: Slewing drives find applications in the aerospace and defense sectors. They are used in satellite tracking systems, radar systems, missile launchers, and other military equipment that require accurate and reliable rotation.
Marine and Offshore: Slewing drives are employed in marine and offshore applications, including ship cranes, offshore drilling platforms, and tidal energy systems. They provide the necessary rotational motion for various operations in these environments.
The versatility, robustness, and ability to handle heavy loads make slewing drives suitable for a wide range of applications. They offer precise control, durability, and reliability, making them an integral component in many industries that rely on controlled rotation or slewing motion.
