Product Details:
|
| Color: | As Required | Size: | 3~25 Inches |
|---|---|---|---|
| Application: | PV Tracking System | Electric Motor: | Yes |
| Enclosed Housing: | Yes | Module: | Worm Gear Module |
| Output Speed: | 0~1 Rpm | Transport Package: | Standard Exporting Package |
| Highlight: | Sun Tracking Systems Vertical Slewing Drive,24V Vertical Slewing Drive,Vertical Slewing Drive With 24V Motor |
||

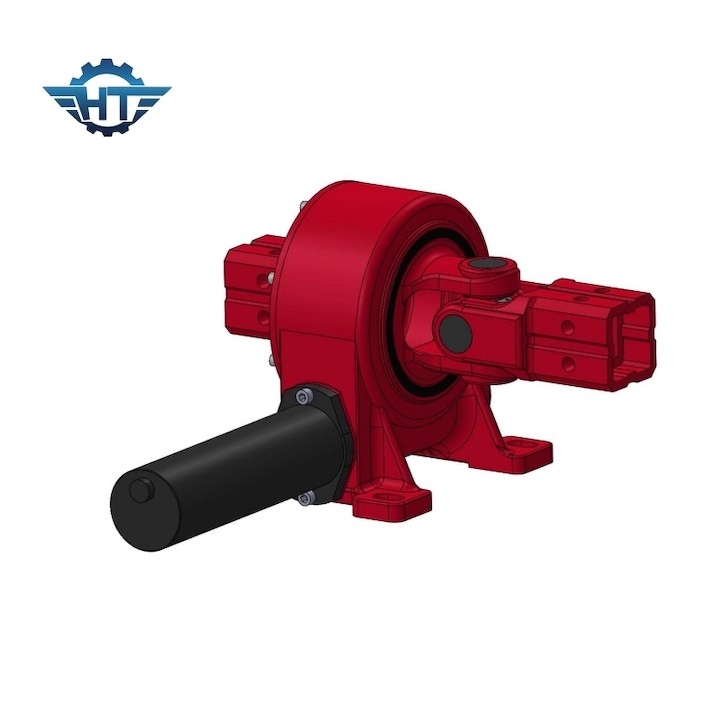

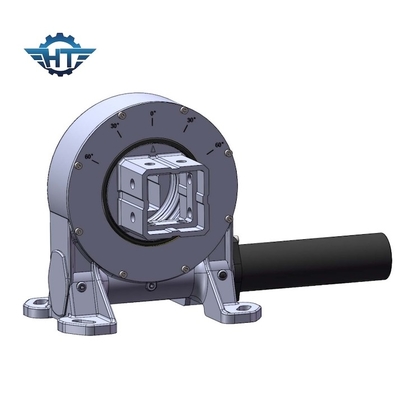

VE9 Vertical Slewing Drive With 24V Motor For Sun Tracking Systems
Worm And Gear Slewing Gearbox Description
Slewing gearboxes are designed to handle high loads, provide precise positioning, and withstand heavy-duty applications. They offer various advantages, such as compact design, high torque capacity, and smooth operation. Additionally, some slewing gearboxes incorporate additional features like integrated brakes or encapsulated sealing systems to enhance their performance and durability.
Vertical Slewing Drive Performance Parameters
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Features
1. Rotate ±60°, hard stop inside to ensure system safety
2. Connect a driving motor from the left or right side
3. The clearance is already set by the producer before factory, no need to adjust when installation
4. Grease had been filled before factory
4. Simple installation and low maintenance
5. Compact design and space saving
6. The gear is self-locking, no need of brake
7. Easy and fluent method of starting and stopping
8. High tilting torque, suitable for horizontal installation
Applications
Worm gear slewing gearboxes are widely used in various applications where precise and controlled rotational movement is required. Here are some common applications of worm gear slewing gearboxes:
Construction and Heavy Machinery: Worm gear slewing gearboxes are commonly used in construction machinery such as cranes, excavators, and aerial work platforms. They provide the necessary torque and smooth rotation required for lifting, swinging, and extending the equipment.
Solar Tracking Systems: In solar power plants and solar tracking systems, worm gear slewing gearboxes are used to orient and track solar panels or mirrors to maximize solar energy capture. The slow and precise rotation of the worm gear allows for accurate positioning of the solar panels to optimize sunlight exposure throughout the day.
