Product Details:
|
| Application: | Solar Tracker | Inside Limit: | Yes |
|---|---|---|---|
| Oem Service: | Available | Maximum Output Torque: | Up To 80,000 Nm |
| Protection Grade: | IP66 | Transmission Efficiency: | 40% |
| Motor Voltage: | 24V | Certifications: | ISO 9001:2015 |
| Highlight: | Solar Tracking System Slewing Drive,IP66 Slewing Drive,High Torque Slewing Drive |
||
One of the key features of the Vertical Slewing Drive is its inside limit, which allows for more precise control over the movement of the solar tracker. This feature helps to ensure that the tracker stays aligned with the sun throughout the day, maximizing energy output. Additionally, the slewing drive operates on a motor voltage of 24V, making it a highly energy-efficient choice for solar tracking systems.
Whether you are installing a solar tracking system on a roof or in a field, the Vertical Slewing Drive is a reliable and efficient choice. Its high transmission efficiency and precise control capabilities make it an ideal choice for solar tracker applications. So if you are looking for a quality slewing drive for your solar tracking system, be sure to consider the Vertical Slewing Drive.
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |

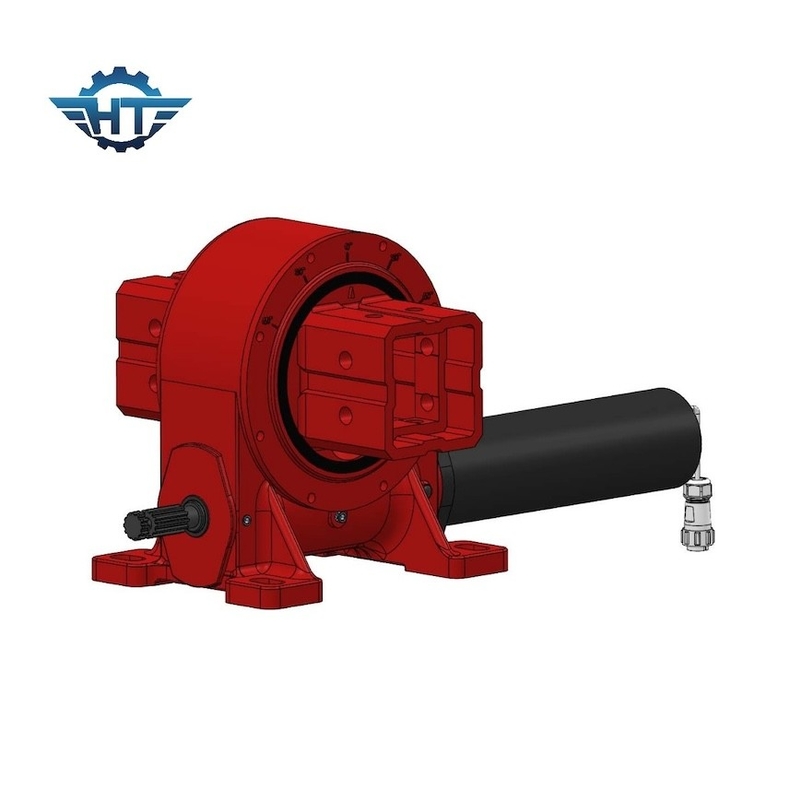

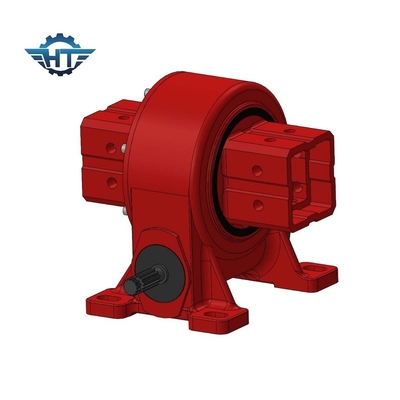

The vertical slewing drive is a single-axis slewing drive that can rotate a load around a vertical axis. It consists of a housing, a worm gear, and a set of helical teeth that engage with the worm gear. The maximum output torque of the vertical slewing drive can reach up to 60,000 Nm, making it perfect for heavy-duty applications. The helical tooth design provides a smooth and quiet operation, reducing wear and tear on the gearbox.
The vertical slewing drive is suitable for a wide range of applications, including solar trackers, cranes, excavators, and wind turbines. The vertical slewing drive is perfect for solar trackers as it can rotate the solar panels to follow the sun's movement throughout the day, maximizing the energy output. In addition, the vertical slewing drive is ideal for cranes and excavators as it provides precise positioning, enabling the operator to lift and move heavy loads with ease.
The vertical slewing drive is also perfect for wind turbines. It is used to rotate the nacelle and blades to face the wind, ensuring maximum energy production. The vertical slewing drive is also used to adjust the pitch angle of the blades, optimizing the turbine's efficiency. The vertical slewing drive's robust design and IP66 protection feature make it suitable for harsh environments, ensuring reliable and long-lasting performance.
The vertical slewing drive is certified with ISO 9001:2015, ensuring high-quality standards and continuous improvement. The vertical slewing drive can be powered by AC or DC or hydraulic motors, making it versatile and adaptable to different applications. The vertical slewing drive is an essential component in various industrial applications, providing precise positioning, high load capacity, and reliable performance.
The Vertical Slewing Drive product is designed to provide reliable and efficient performance for applications requiring rotational torque and axial load support. Our technical support team is available to provide assistance with product selection, installation, and troubleshooting. Our services include:
Contact us today for more information on how our Vertical Slewing Drive product can meet your specific application requirements.
