Product Details:
|
| Motor Voltage: | 24V | Motor: | AC Or DC Or Hydraulic Motor |
|---|---|---|---|
| Oem Service: | Available | Protect Feature: | IP66 |
| Standard Color: | Silver Grey | Noise Level: | Low |
| Inside Limit: | Yes | Maximum Output Torque: | Up To 60,000 Nm |
| Highlight: | 40% Transmission Efficiency Slewing Drive,800 Nm Vertical Slewing Drive,40% Transmission Efficiency Vertical Slewing Drive |
||
One of the standout features of this slewing drive is its low noise level, which makes it an ideal choice for use in residential and commercial areas. It is also highly customizable, with OEM services available to help clients tailor the product to their specific needs. As a result, this slewing drive offers unparalleled versatility and adaptability, making it a top choice for a wide range of solar tracker applications.
When it comes to quality, the Vertical Slewing Drive is second to none. The product is certified under ISO 9001:2015, which is a testament to its high level of manufacturing standards and commitment to excellence. With this certification, customers can rest assured that they are getting a top-quality product that meets strict quality standards.
Overall, the Vertical Slewing Drive is an excellent choice for anyone in need of a high-quality, reliable, and efficient slewing drive for single axis solar tracking systems. With its robust construction, customizable options, and impressive certifications, this product is sure to exceed expectations and provide reliable performance for years to come.
| VE Model Performance Parameters | |||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency | Working Tep(℃) | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | -40～+80 | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | -40～+80 | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | -40～+80 | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | -40～+80 | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | -40～+80 | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | -40～+80 | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | -40～+80 | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | -40～+80 | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | -40～+80 | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | -40～+80 | 251 kg |

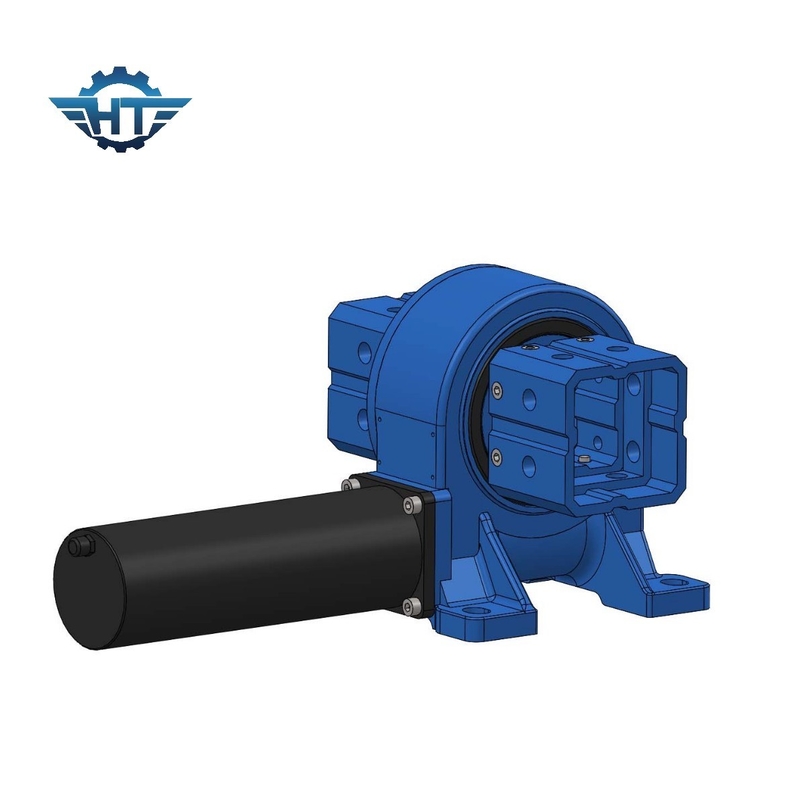

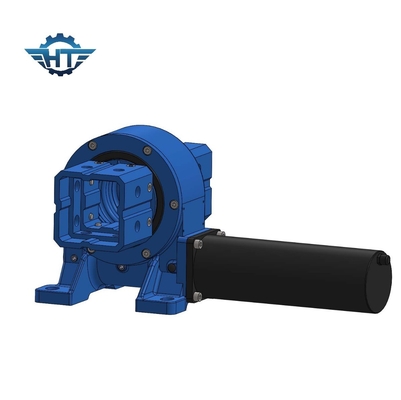

The output torque of the product is 800 Nm, making it suitable for a wide range of heavy-duty applications. The helical tooth design provides a smooth and efficient power transmission, ensuring the drive performs optimally, even under heavy loads.
The vertical slewing drive is compatible with AC, DC, or hydraulic motors. This versatility makes it easy to integrate into various industrial applications, including those that require precise motion control. Additionally, the product's protection grade is IP66, meaning that it is dust-tight, and can withstand powerful water jets, making it ideal for use in harsh environments.
The small backlash slewing drive is an excellent solution for applications where precision is critical. It ensures smooth and accurate movements, making it ideal for industrial, marine, and construction applications. The dual axis slewing drive is perfect for solar trackers, providing the needed accuracy and control to ensure maximum energy production.
The dual axis solar tracker slewing drive is designed to support the weight of the solar panels while providing accurate positioning and control. It is an essential component of the solar tracking system, ensuring that the panels track the sun's movement throughout the day, maximizing energy production. The product's helical tooth design ensures that it can handle the load and perform optimally, even under heavy wind and weather conditions.
The Vertical Slewing Drive product technical support and services are designed to assist customers with any issues that may arise during the installation or operation of the product. Our team of experienced engineers can provide guidance on product selection, installation, and maintenance, as well as troubleshooting and repair services. We also offer customized solutions to meet specific customer needs.
