Product Details:
|
| Motor: | AC Or DC Or Hydraulic Motor | Output Torque: | 800 Nm |
|---|---|---|---|
| Application: | Solar Tracker | Protect Feature: | IP66 |
| Motor Voltage: | 24V | Inside Limit: | Yes |
| Noise Level: | Low | Protection Grade: | IP66 |
| Highlight: | IP66 Vertical Slewing Drive,Roof Field Vertical Slewing Drive,Ground Vertical Slewing Drive |
||

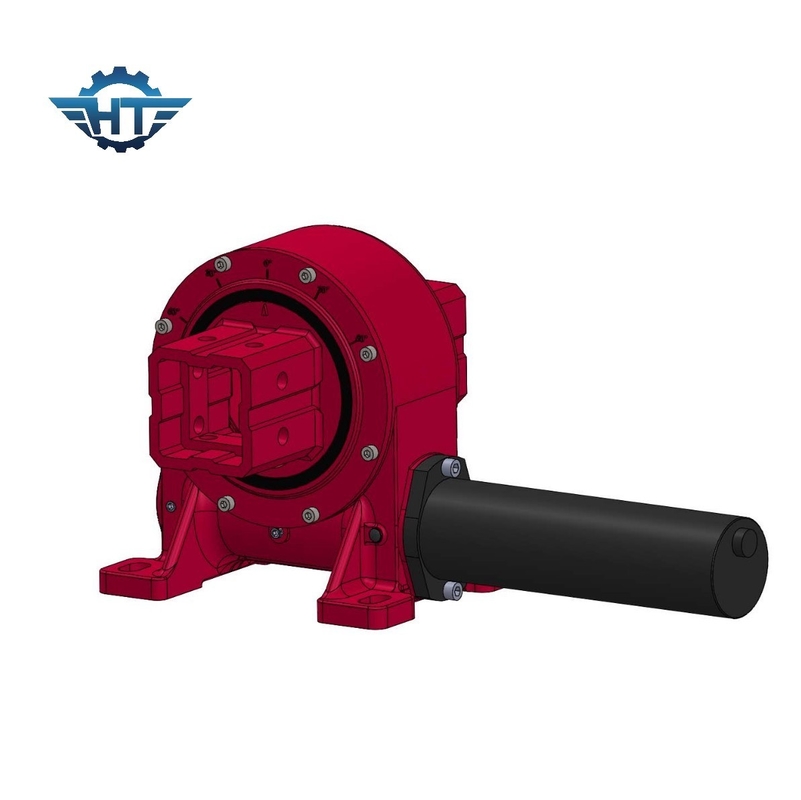

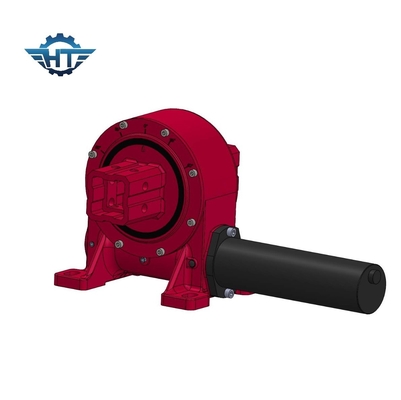

One of the standout features of the Vertical Slewing Drive is its motor voltage of 24V. This means that it is compatible with a wide range of motors, including AC, DC, and hydraulic motors. This versatility gives users the flexibility to choose the best motor for their specific needs, ensuring that the Vertical Slewing Drive can be integrated seamlessly into existing systems.
In addition to its motor compatibility, the Vertical Slewing Drive also includes an inside limit, which provides an added layer of protection against overloading and other potential issues. This feature gives users peace of mind knowing that their equipment is protected even in the most demanding applications.
The Vertical Slewing Drive is designed with helical teeth, which provide a number of benefits over other types of teeth. Helical teeth are known for their improved load distribution and reduced noise levels, making them an ideal choice for applications where quiet operation is important. Additionally, helical teeth provide smoother operation, which can help to extend the lifespan of the Vertical Slewing Drive.
Overall, the Vertical Slewing Drive is an excellent choice for anyone in need of a high-quality single axis slewing drive. Its high transmission efficiency, motor voltage compatibility, inside limit, and helical teeth make it a powerful and reliable component for a wide range of applications.
| VE Model Performance Parameters | |||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency | Working Tep(℃) | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | -40～+80 | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | -40～+80 | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | -40～+80 | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | -40～+80 | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | -40～+80 | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | -40～+80 | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | -40～+80 | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | -40～+80 | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | -40～+80 | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | -40～+80 | 251 kg |
With an output torque of 7kNm, this slewing drive can handle heavy loads and provide reliable performance. The inside limit feature ensures that the drive stays within its safe operating range, providing added safety and security for the solar tracking system.
The Vertical Slewing Drive product is also available with OEM service, which means that it can be customized to meet specific requirements and needs. This allows for greater flexibility and adaptability, making it easier to integrate into existing solar tracking systems.
The slewing drive for single axis solar tracking system is perfect for residential, commercial, and industrial solar power generation. It is designed to provide smooth and precise movement, ensuring that the solar panels are always facing the sun for maximum energy generation.
In summary, the Vertical Slewing Drive product is a reliable and versatile solution for the Solar Tracker application. It is suitable for both roof and field installation sites, and can handle heavy loads with ease. With its inside limit feature and OEM service availability, this gearbox slew drive is an excellent choice for solar power generation.
The Vertical Slewing Drive product technical support and services include:
